SS6143.
14,3kWh | Advanced Lithium Iron Battery
Solar MD’s High Voltage battery range is built in-house with high-quality materials and innovative technology. These batteries are designed to be versatile, offering a variety of solutions for homes, businesses, and industrial facilities applications.
Applications.
Back-Up Power
Peak Shaving
Off-Grid
Charger Systems
Residential & CommerciaI UPS Systems
High Voltage Battery Inverter
High Voltage Range Features.
Product Benefits.
Increased Energy Independence
Gain greater control over your energy supply and reduce your carbon footprint while ensuring uninterrupted power during outages keeps your business operational.
Reduced Energy Bills
Store excess solar energy for use during peak hours, minimising reliance on the grid and lowering electricity costs.
Designed to Scale
Scale your energy storage as your business grows, ensuring you always have the power you need. Our modular design is adaptable to your changing needs, ensuring you always have the power to support your operations.
Technical Info.
SS7007 - SS7010
71.5kWh - 100.1kWh
5-7 Modules
SS7011 - SS7016
114.4kWh - 157.3kWh
8-11 Modules
SS7017 - SS7024
171.6kWh - 243.1kWh
12-17 Modules
SS70xx.
The SS70xx range combines the SS6143 battery module into a high voltage battery solution of 5 to 17 modules, which is widely used in energy storage applications worldwide. The battery capacity starts at 71.5kWh up to a maximum of 243.1kWh per battery as per below table.

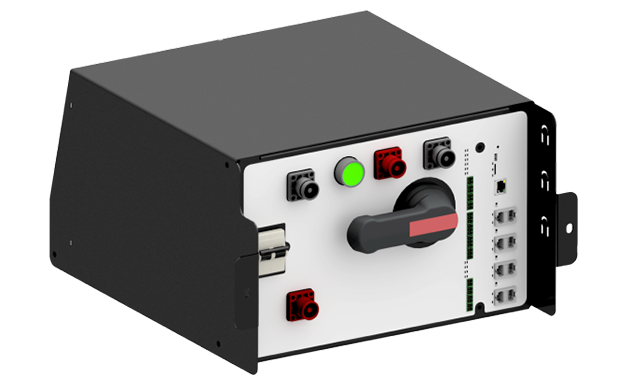

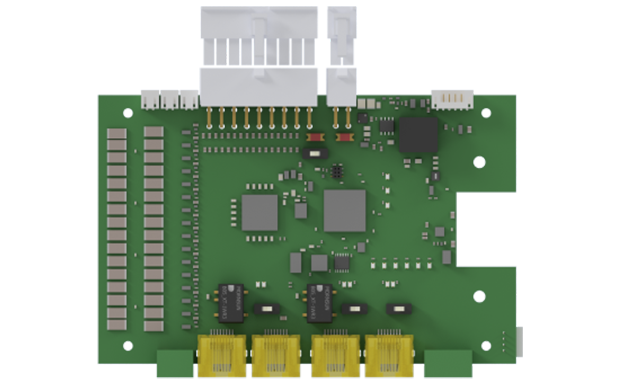

The SS70xx solution can then be connected in parallel in a nearly infinite number to meet your storage requirements. Each high voltage energy storage system comes with the Solar MD advanced BMU on top of each stack and BMS in each SS6143 battery module. Together with our Logger V2 this technology Integrates with major inverter brands.
Our High Voltage Products in the Real World.

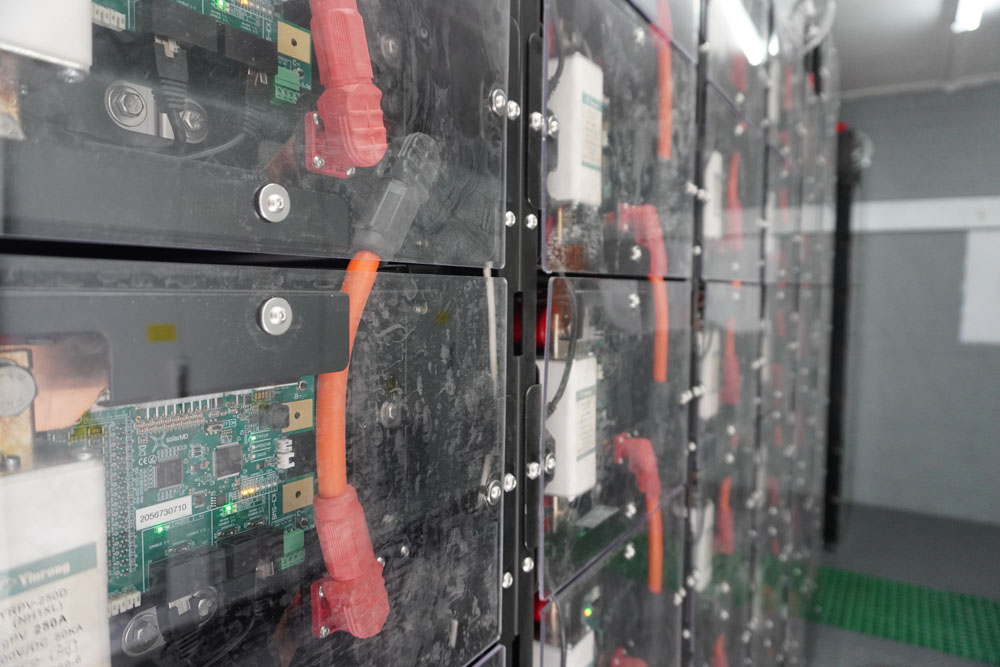

Our high-voltage commercial battery solutions power businesses across various industries. Explore real-world examples of how the SS6143 module and SS70xx rack system are seamlessly integrated into diverse applications, from manufacturing plants to retail stores.
Recommended Products.
Testimonials.
What our clients say
Author Name
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem.
Author Name
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem.
Author Name
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat, sed diam voluptua. At vero eos et accusam et justo duo dolores et ea rebum. Stet clita kasd gubergren, no sea takimata sanctus est Lorem.
Product Showreel.
Frequently Asked Questions.
High Voltage Questions.

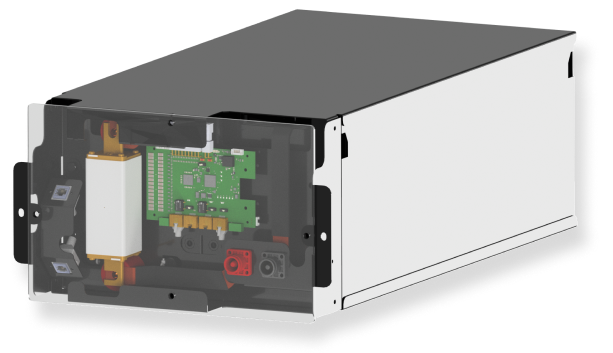

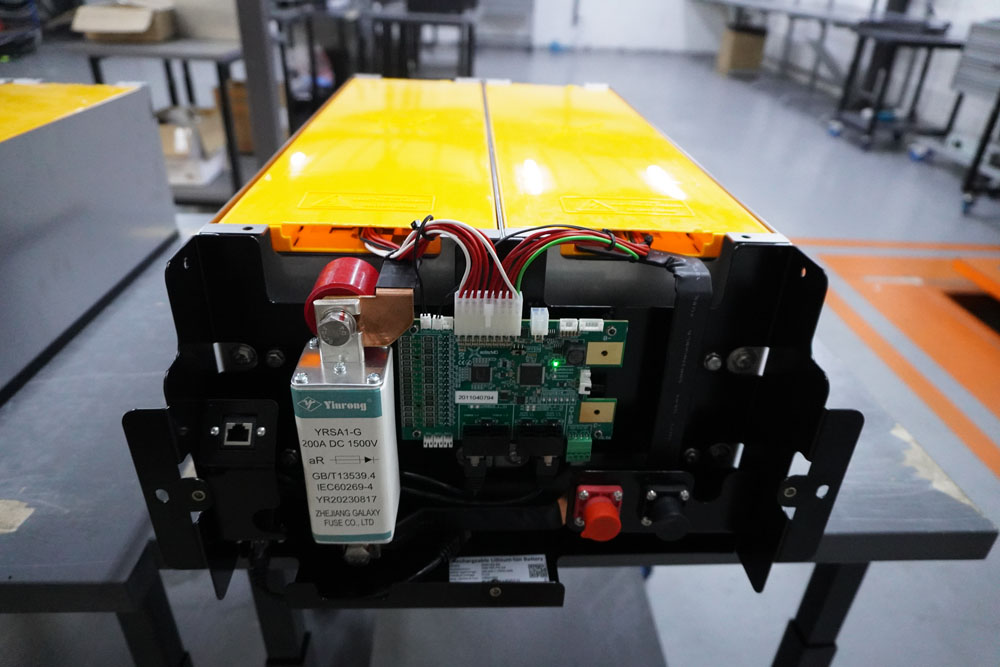

The SS6143 is a 14.3 kWh lithium iron phosphate (LiFePO4) battery module designed for use in high-voltage energy storage systems. It is a key component of the Solar MD SS70xx rack system.
The SS70xx is a high-voltage battery rack system that utilises the SS6143 battery modules. It is a modular and scalable system that can be configured to meet a variety of energy storage needs. The system is designed for commercial and industrial applications and offers high energy density, long life cycles, and exceptional safety.
The capacity of the SS70xx ranges from 71.5 kWh to 243.1 kWh, depending on the number of SS6143 modules used.
The SS6143 has a lifespan of over 6,000 cycles.
The SS6143 and SS70xx come with a 5-year material and workmanship warranty and a 12-year energy output warranty.
The maximum charge and discharge current of the SS6143 is 200A.
The SS6143 weighs 114 kg and has dimensions of 410 mm x 712 mm x 242 mm.
The SS6143 and SS70xx include several safety features, such as a Battery Management System (BMS), Battery Management Unit (BMU), and fuse protection.
Click here to view and enquire from all our distributors and installers for pricing and availability in your area.
